Using one of these Fuel Flow Meters lets you determine the "Sweet Spot"

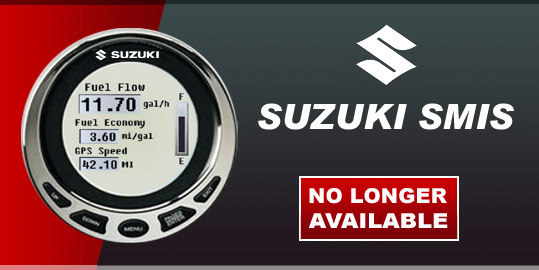

Suzuki SMIS 4" Multi-function Gauge by Lowrance

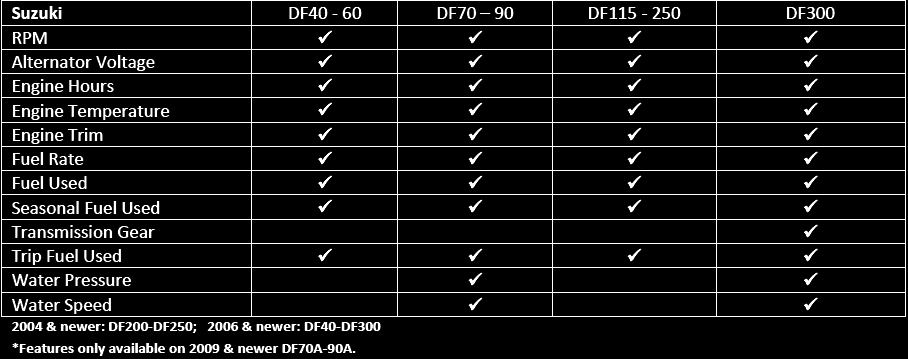

Suzuki Outboard 2004 & newer: DF200 to DF250

Suzuki Outboard 2006 & newer: DF40 to DF300

SMIS making Suzuki Engine Management easy!

The Suzuki SMIS maximises the usage of a Suzuki engine management interface, by connecting to the NMEA 2000® network and a Suzuki outboard engine to enable real-time monitoring of crucial engine data. Sounds complicated, to achieve doesn’t it? But this connection is quick and easy, made possible by using just one cable that is attached from your Suzuki engine to the NMEA 2000 network.

Keeping an eye on speed, fuel rate, engine temperature, oil pressure, system voltage and engine hours, to name but a few features, can help ensure that your boat is not only performing to its full potential, but that engine warnings are heeded with speed and acted upon, ensuring journeys are smooth and trouble-free.

Having engine gauges available to see clearly from a Suzuki SMIS can also save the inherent cost of fitting individual display units and once again keep helm clutter to a minimum – particularly on smaller boats and RIBs where space is at a premium.

Suzuki Outboard 4" SMIS Multifunction Gauge KIT

Advanced multi-function, high-contrast round dot matrix gauge displaying graphic and numerical digital data. NMEA 2000® data communications compatible, and connect within an affordable, high-performance LowranceNET™ network to display real-time readings from an array of compatible electronic probes (E.P.s), like fuel flow, speed, mpg, fluid level, temp, and more!

Key Features

Compact size fits 3-3/8" (86mm) diameter hole

High-contrast dot matrix display with advanced LED backlighting

NMEA 2000® compatible

Capable of configuring other NMEA 2000 devices on the network bus

Capable of displaying the following NMEA 2000 data: paddlewheel speed, GPS speed, tachometer, battery voltage, alternator voltage, engine temperature, water pressure, engine oil pressure, fuel pressure, boost pressure, transmission oil pressure, atmospheric pressure, temperature, depth, engine loads, engine hours, fuel flow, fuel economy, fuel remaining, fuel used, fuel range, trip fuel used, seasonal fuel used, engine synchronizer, fluid level, GPS position, trim tab position, engine trim position, and engine alarms and warnings

Capable of showing data in the following page formats: single digital, dual digital, quad digital, single analog, dual analog, quad analog, trim tab, engine diagnostics, engine trim, and engine synchronizer

Compatible with an array of electronic probes, including fluid level, temp, speed, and more

Capable of connecting to a remote speaker for alarms

Twin engine - Triple engine

You will need one kit per engine plus a fluid level sensor for each tank in the boat to have fuel level.

Setting the Units

The change Units menu will allow you to set the unit of measure for volume to Gallons or Liters, and the speed to MPH, KMH or Knots.

This gauge will only work with a NMEA 2000 network or Power node.

It MUST be connected to a NMEA 2000 network / Power node or it WILL NOT function

The SMIS KIT also includes an Power node and interface cable.

Accessories:

GPS Receiver Module 990C0-88120

Fluid Level Sensor 990C0-88116

Pressure Sensor 990C0-88139

Bezel: Gold or Chrome Silver

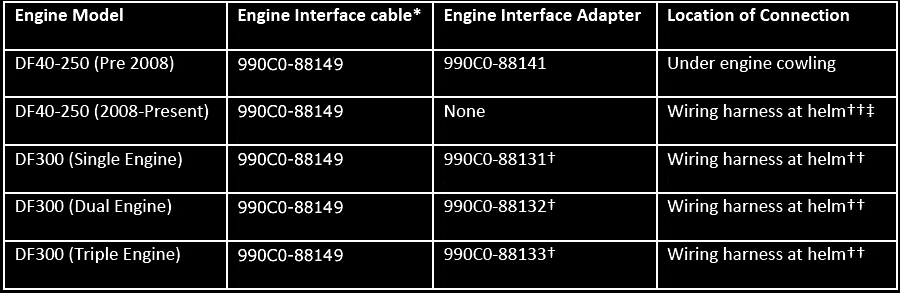

Engine Interface Cable 990C0-88149 / Adapter

Key Features

Video: Suzuki SMIS, Evinrude I-Command and Lowrance LMF-400

Install yourself?

Suzuki SMIS systems are not difficult to install, it's essentially "plug and play".

Suzuki SMIS
